Digital Mixers

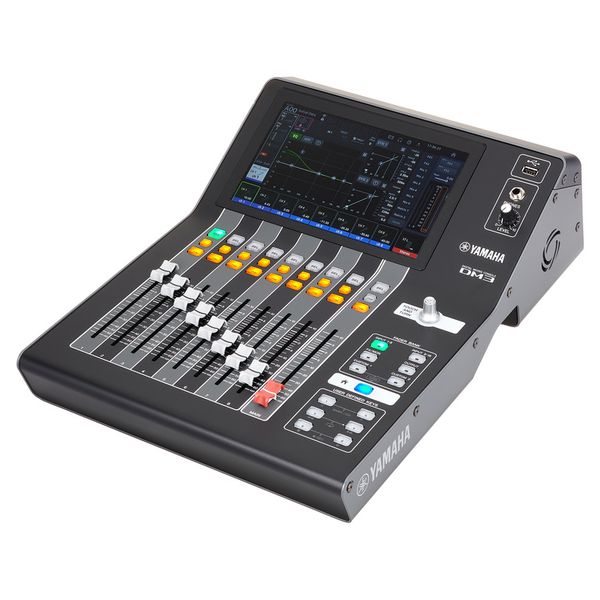

Yamaha DM3S

4.6 out of 5 stars from 12 customer ratings
Yamaha
Yamaha DM3S
Start 360°
Yamaha DM3S
Yamaha DM3S
Yamaha DM3S
Yamaha DM3S
Yamaha DM3S
Yamaha DM3S
Yamaha DM3S
Yamaha DM3S
Yamaha DM3S
Yamaha DM3S
Yamaha DM3S
Yamaha DM3S
Yamaha DM3S

16-Channel Digital Mixer for Studio, Stream and Live Applications

  • 9" Multi touchscreen
  • 9 Motorised faders
  • "Turn & Touch" controls
  • 18 x 18 USB 2.0 audio interface 48 kHz / 96 kHz
  • 16 Mono inputs + 1 Stereo + 2 FX return
  • 8 Outputs
  • Buses: 1 stereo, 6 mix, 2 FX, 2 matrix (supports input to matrix)
  • DAW Remote Feature (HUI)
  • OSC support for installations
  • Editor app available for tablet (tablet not included)
  • 6 Freely assignable buttons
  • 2 x 2 Channel recording/playback via USB port
  • 18 Selectable effects + GEQ on Mix 1-6 and Stereo Bus
  • Dimensions (W x H x D): 320 x 140 x 455 mm
  • Weight: 6.5 kg
  • Includes Steinberg Cubase AI and VST Rack Elements

Connections

  • 16 Mic/line inputs: 12x XLR, 4x combo XLR/jack 6.3 mm
  • 8 Line outputs: XLR
  • Stereo headphone output: 6.3 mm jack
  • USB to Host
  • USB to Device
  • Ethernet RJ45
30-Day Money-Back Guarantee
3-Year Thomann Warranty
  • Available since April 2023
  • Item number 564188
  • Sales Unit 1 piece(s)
  • User Interface Physical/remote
  • Number of faders 9
  • DSP Input channels 16
  • Mic Preamp 16
  • Physical outputs 8
  • Digital stagebox connection No
  • Hotspot No
  • Multitrack Record Yes
  • integratated Player/Rec via USB/SD stereo
  • 19" Rackmount Optional
  • Max.number of input channels 16
  • Microphone Inputs 16
  • Analog Line Inputs 16
  • Analog Line Outputs 8
  • DSP Output Channels 8
  • Busses 6
  • Digital Inputs 0
  • Mono-Line Input 16
  • Digital Outputs 0
  • Stereo-Line Input 0
  • Motorfader Yes
  • Ethernet Yes
  • Computer interface USB
  • Special Features 18x18 USB Audio Interface
  • Soundcard interface USB-B
  • Recorder Format WAV/MP3
  • RTA No
  • FX Processor 2
  • 31 Band EQ 0
  • Delay Input Yes
  • Delay Output Yes
  • Matrix 2
  • DCA/VCA Groups 0
  • Midi Connector No
  • Sample rate 96 kHz
  • Separate Personal Monitor system No
  • Expansion Card slots 0
  • Digital ADAT No
  • Digital SPDIF No
  • Digital AES3/ASESEB No
  • Digital MADI No
  • Digital Dante No
  • Case No
  • Height 140 mm
  • Width 320 mm
  • Depth 455 mm
  • Weight 6,5 kg
